Vision's lighting,make the word different
9 Years
| Ask Lasest Price | |
| Brand Name : | VISION |
| Model Number : | VS24EJ-120 |
| Certification : | CE |
| Price : | negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 50000 pcs/month |
| Delivery Time : | 40-50 days |

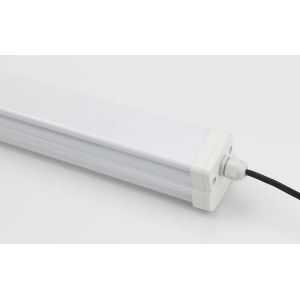

IP65 LED Water Proof Fixture
FEATURE
a. extrusion forming,waterproof IP65,IK06,keep protect.
b. energy-efficient, more than 30,000 hours
c. With highly active non-isolated drive.
d. The whole lamp passes the test of protection grade and heat dissipation
e. Can match with emergency function or sensor.
Parameter
Input Voltage:180~265V 50/60Hz PF:>0.9 CCT:2700~6500K
| Model | VS24EJ-120 | LampPower(W) | 24 | Input Voltage(V) | AC180-265V |
| LED type | SMD 2835 0.5w | LED Qtys(pcs) | 120 | Luminous Flux(lm) | 2400 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - +50 |
| Lamp length(mm) | 4FT-1200 | Package (pcs/ctn) | 8 | Meas(mm) | 1225*140*352 |
Body
1. Extrusion type
2. Opaque UV stabilized PC body
3. pvc sheet plant with one led baord
4. size for choose:60/120/150 cm
Electrical
1. Operating voltage:180~265V AC,50/60Hz
2. Power Factor:0.9
3. SMD 2835 0.5W LED Chips
4 .CCT:2700~6500K
5. Wattage:12/24/30w
6. Certificate:CE,RoHS,EMC
SURFACE
Installation
Application Places:
Supermarket,subway station,workshop,tunnel and so on
Company profile
Cixi Vision Electronic Technology Co., LTD is a high-tech company, which as a eleven years professional manufacturer of various kinds of high quality electronic ballast, LED drive, LED waterproof fixture,pri-proof light,batten lamp,set of product R&D, design, production, sale in a body.
Vision has owned strong R&D team,completed production line,strict quality control system and reliable services.We also have sumsang 481 LED SMT equipments and other high-tech equipment.
Vision focus on products’ quality,carry out the “5S” during the whole production. Do better than you want.Products refer to dozens of varieties, all the ballasts and fixtures with GS,CE,RoHS Reach certificates, exported to Europe, North America and other countries and regions.
www.vision-lighting.cn
|
|
